Stäubli Electrical Connectors Precision Engineered Electrical Connector Solutions
Stäubli Electrical Connectors (Stäubli Group) is a Swiss-based leading manufacturer of electrical connectors and contact systems, providing innovative solutions for demanding applications. Stäubli Electrical Connectors builds on more than 50 years of engineering and design experience to continually break new ground in the field of advanced contact technology.
The Stäubli, product range includes interconnection systems for the most demanding applications in aerospace, medical, robotics, solar energy, general industry and test and measurement. Our plugs and sockets are designed for high performance, high mating cycles and low insertion/extraction forces, and are ideally suited for low and high current applications.
Advanced Contact Technology

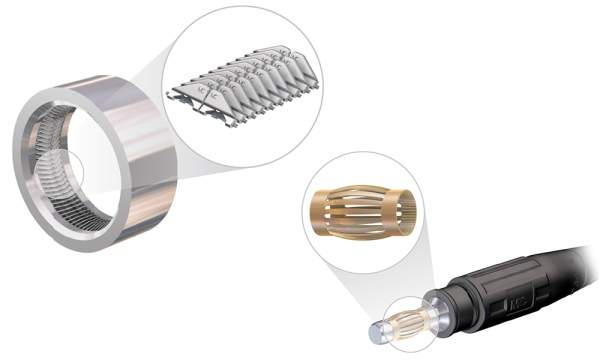

Our advanced contact technology, the MULTILAM, meets any requirements, even within the most severe constraints, whether electrical, thermal or mechanical in nature. The MULTILAM is a multi-functional contact interface, which provides electrical performance coupled with mechanical properties. Its unique design allows constant spring pressure, so that during continuous or even pulsed loads, contact resistance stays low and voltage drop is minimal. The highly versatile MULTILAM is characterised by high energy efficiency, reliability and a long lifespan.
Your Solutions Provider
We offer various contact forms depending on your applications. Our cylindrical contact forms work for either a socket (to mate with a rigid pin) or a pin (to mate with a rigid socket). Our flat contacts are suitable for connecting busbars, either by pushing together or by clamping. Large busbar units can be connected with minimum time and effort. Our fork contacts are particularly suited for contacting busbars in rack and panel applications. It is simple to install parallel busbars with flat-mounted fork plugs.
Our round connectors tolerate angular misalignments, so allowances can be made for axial displacements. Our contacts found in our CombiTac product line feature a modular plug connector system, which combines electrical signal, power, gas, compressed air, fluid, fibre-optic, communication, coaxial, and thermocouple circuits in a single connector. We also offer multi-pole contacts, which allow for space-saving compact plug forms, especially suited for high mating cycle applications such as automation environments.
Our high-performance industrial connectors are designed to meet the demands of harsh industrial environments. Equipped with our tried and tested MULTILAM, they offer the lowest contact resistance and extremely high current density. Our power connectors are used in a wide range of applications, such as power generation and distribution, rack and panel applications, machine control systems, mobile transformers and many more. Wherever high currents need to be safely transmitted through a removable electrical connection, industrial connectors are the preferred choice worldwide. Product groups include:
- Powerline: industrial power connectors for high current applications
- Slideinline: slide-in rack connectors and fork plugs for bus bars
- CombiTacline: modular connector system for plug-in module technology
- Motorline: quick-connection adapters for electrical motor testing
- Miniline: miniature connectors for printed circuits (PCB) and connecting leads
- Utilitiesline: flat bar clamps and test accessories for electric utilities
- Railwayline: electrical contacts for railway technology
Connectors for Automation Systems
Applications include manually or automatically actuated multi-couplings for docking systems, automated assembly lines, tool change systems for machining and moulding equipment, and robotics.
Our automatic system connectors feature a rugged and reliable design specifically engineered for high mating frequencies. They’re equipped with MULTILAM technology for the lowest contact resistance and extremely high current density. Product groups include:
- Dockingline: multi-pole connectors for multi-couplings and docking systems
- Roboticline: primary circuit connectors for electrical welding transformers
Connectors for renewable energy

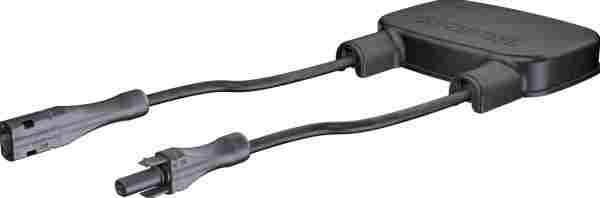

Stäubli Electrical Connectors is a pioneer in the field of photovoltaics and a world leader in connection systems for solar panels. The components of MC plug connector systems for photovoltaics are designed to permit time-saving, dependable series and parallel cabling of solar modules, both free-standing and integrated into buildings.
Stäubli Electrical Connectors PV plug connector systems allow pre-assembly of PV modules at the factory or on-site workshop. The equipment from the inverter to the module can be quickly installed by skilled construction workers, dramatically reducing installation costs. Product groups include:
- Solarline: plug connectors, junction boxes and cables for photovoltaics
Connectors for electro-medical equipment
In medical technology, the reliability of all components is critical. In intensive care units, for instance, human life often literally depends on the performance of connected medical equipment.
Stäubli Electrical Connectors’ special product line of connectors for electro-medical equipment was developed using our specialised expertise in the development and manufacturing of test and measurement safety products. These meet the unique requirements of the medical industry. Featuring our MC MULTILAM technology and gold-plated contact elements, our medical connectors provide the highest dependability and corrosion resistance. Product groups include:
- Medicalline: medical industry connectors compliant with industry standards DIN 42801 and 42802
Test and measurement
Over the last four decades, Stäubli Electrical Connectors has become internationally renowned for its safe, high-quality test accessories. Whether for testing, measuring or diagnosis of components and systems, our innovative test accessories offer you the performance, dependability and repeatability you need. Our test and measurement product family includes our test accessories for high-frequency engineering, our wide range of highly flexible wire and our complete line of insulated test accessories, which meet and exceed today’s stringent safety requirements. Product groups include:
- T&MLine: test and measurement accessories
- HFLine: test accessories for high-frequency measurements
- Cableline: cables and multistrand wires
Products and Services
Powerline: Round Connectors
This brochure offers details and specifications of Multi-Contact's range of round connectors.
Electrical Grounding Hinge
The lower part of the electrical grounding hinge (EGH) is mounted on the cabinet, and the upper part on the door. The pivot connection is made by a pin Ø 6 mm. In addition to the mechanical pivot function of a hinge, the EGH also provides an electrical ground connection between the door and the cabinet.
