APC Analytics On-line Analysers for Bulk Materials Sampling in Thermal Power Applications

bulk materials samplingAPC Analytics produces reliable on-line analysers, which use patented sampling technology and additional components to assess bulk resources such as coal, lignite, ore and cement in thermal power plants.

The company’s products have been thoroughly tested to endure the adverse conditions in power facilities.

Fully programmed on-line analysers for lignite-fired energy production

APC Analytics on-line analysers are based on proven technology, in addition to more than 25 years of expertise and innovation.

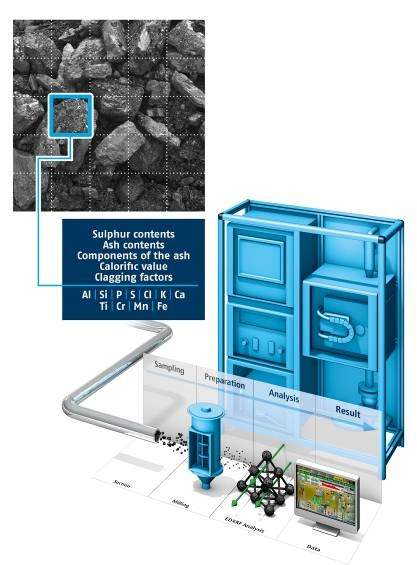

SOLAS® is a fully programmed sampling and analysing system, which has been employed for more than 15 years by lignite-fired power plants and mines in Germany, as well as the world’s largest iron ore mine in Brazil.

Automated sampling and analysing systems for bulk goods applications

SOLAS efficiently determines the chemical and elemental composition of bulk goods in conveyor transfers, crushers and loading stations.

The on-line analyser can operate as a standalone system or with additional sampling and preparation devices.

SOLAS’s smart transport facility enables users to obtain samples from different points and transfer them to the analytical unit. The solution is currently used in plants with six sampling points measured at a maximum distance of up to 50m.

X-ray analysers for chemical component detection

The energy-dispersive X-ray analyser, X-PLORER 9000 (EDXRF), quickly and simultaneously examines chemical components such as aluminium and uranium.

Other parameters and variables can be determined on the basis of the element content such as the calorific value of lignite / coal, sulphur and ash contents / composition.

Detection limits of common elements (lignite / coal) include:

  • Al: 100ppm / Si: 80ppm / S: 50ppm / K: <50ppm
  • Ca: <50ppm/ Ti: <50ppm/ Mn: <50ppm/ Fe: <50ppm

Hammer and turbo mills for bulk materials sampling

APC Analytics offers hammer and turbo mills, as well as conventional sampling systems for the arrangement of bulk materials.

There are two sizes of hammer mills available, including the HAMILL 4000, which facilitates a mass flow of around 4t/h and grain size of less than 10mm. The HAMILL 250 has been designed for a flow of 250kg/h and particle size of 2mm or less.

APC Analytics is currently constructing a large hammer mill for a 300mm input grain size and output size of less than 50mm. Other variations of this product can be designed according to the customer’s requirements.

The turbo mill Airmill 6000, with its distinctive milling technique, reduces the air stream material to powder with an average grain size of around 50µm (median value) in the case of lignite, depending on the field of application and design.

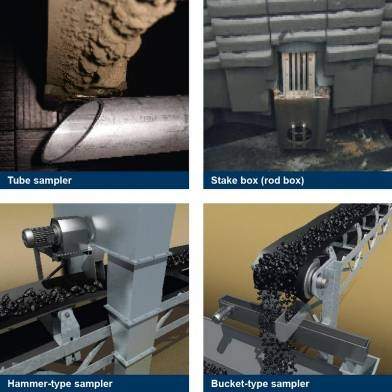

Conventional sampling systems for large mass flows

The fitting of a stake / rod box is recommended to continuously test large mass flows.

The box is flexible and clears blockages or stops the sampling process during the overburden production in open-cast lignite mines.

APC Analytics provides hammer-type samplers for several conveyor belt measurements, as well as those used in standard sampling methods.

Automatic sample conditioner and analyser

KOLA combines SOLAS technology with sample preparation machines. Components are mounted in two identical modules.

The preparation unit module combines (in order of material flow) the HAMILL 4000, screw conveyor, and HAMILL 250, while the analysing unit components include the Airmill 6000 and SOLAS.

Bulk goods have to be transported with the preparation unit at the top of the module, while there is a conventional sampling system or a sample splitting device necessary, depending on the local situation.

Hardware to aid bulk material preparation and analysis in laboratories

APC Analytics provides belt, screw and troughed chain conveying equipment for the transportation of bulk materials.

The company also delivers KOLA / SOLAS modules for analysing laboratory samples.

It is possible to connect a sampling system to a combination KOLA when establishing mean sample values in a shift. The grain size is less than 2mm, while samples are preserved and can be made available for further laboratory tests.

They can also be stored and automatically fed into the pneumatically activated sample transport system SOLAS with the automatic sample feeder, ADOP.

The system features a radio-frequency identification (RFID) reader, which prevents samples from getting mixed up, while the amount of sample bins analysed can be defined according to the customer’s specifications.

APC Analytics provides several engineering services, including:

  • Analytical tasks and consulting
  • Sampling, sample processing and consulting
  • Automation engineering (Siemens S7, visualisation WinCC)
  • Designing and developing switching cabinets (cubicles)
  • Planning and manufacturing steel structures (platforms, conveying equipment and conventional samplers)
  • Project execution
  • Steel construction
