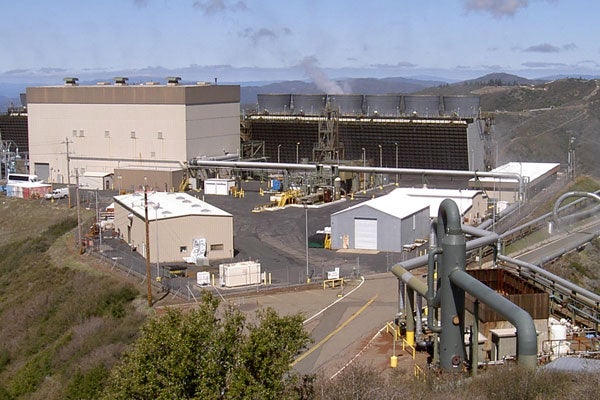

The Geysers Geothermal Complex, California, US – 1.2GW
The Geysers Geothermal Complex located 121km north of San Francisco, California, is comprised of 15 power plants making it the biggest geothermal installation in the world. The complex has an installed capacity of 1,205MW.
Calpine owns 13 power plants in the complex, which have a combined net generating capacity of 725MW, while two power plants with a capacity of 240MW each are jointly owned by Northern California Power Agency and Silicon Valley Power, as well as US Renewables Group, which owns the Bottle Rock Power plant.
The complex covers an area of 78km². Production from the geothermal field commenced in 1960 and reached its peak in the 1980s. The turbine suppliers for the power plants in the complex were Toshiba and Mitsubishi Steam.
Larderello Geothermal Complex, Italy – 769MW
Larderello Geothermal Complex, comprising 34 plants with a total net capacity of 769MW, is located in Tuscany in central Italy. The power generated by the complex accounts for approximately 10% of all geothermal energy produced worldwide and caters for 26.5% of regional power needs.
Enel Green Power owns the power plants at the complex serving approximately two million families, 8,700 residential and business customers, and 25ha of greenhouses. Reservoir depths at the geothermal field range from 700m to 4,000m below the surface. The first plant at the geothermal field was commissioned over a century ago in 1913, making it the first of its kind in the world.
The first Larderello power plant had a generating capacity of 250kW comprising a turbine designed and built by Tosi Electromechanical Company. The geothermal plants at the field were rebuilt after they were destroyed during the Second World War.
Cerro Prieto Geothermal Power Station, Mexico – 720MW
At 720MW, Cerro Prieto Geothermal Power Station in south Mexicali, Baja California in north Mexico, is owned and operated by the Comisión Federal de Electricidad (CFE), like all other geothermal fields in Mexico.
The power station features four plants, comprising 13 units. The first plant was commissioned in 1973, while the fourth plant was commissioned in 2000.
The turbines at the complex include four 110MW condensing type, four 110MW double-flash type, four single-flash of 37.5MW each, four single-flash of 25MW each, and one 30MW single-flash, supplied by Toshiba and Mitsubishi Heavy Industries.
Makban Geothermal Complex, Philippines – 458MW
Makban Geothermal Power Complex, also known as Makiling-Banahaw Power Plants, is located in the municipalities of Bay and Calauan in the Laguna province and Santo Tomas, in the Batangas province.
The geothermal power complex is owned by AP Renewables, a wholly owned subsidiary of Aboitiz Power. The complex consists of six power plants comprising ten units, including a binary plant with five 3MW units and one 0.73MW unit.
The complex, covering an area of 700ha, commenced operations in 1979. Mitsubishi Heavy Industries was one of the turbine suppliers for the plants at the complex.
Salak Geothermal Plant, Indonesia – 377MW
The Salak Geothermal power plant located 70km from Jakarta, Indonesia, has an installed capacity of 377MW.
The power plant was originally developed by a group of companies, including Chevron Global Energy and Union Oil Company. It was acquired by the Star Energy Consortium comprising Star Energy Group Holdings, Star Energy Geothermal, AC Energy, and Electricity Generating Public Company in December 2016.
The power plant supplies geothermal steam to a plant operated by PLN, a state-owned electricity distribution company, to generate 180MW of electricity. It also operates 197MW of power plants that use geothermal steam to generate electricity, which is supplied to the Java-Madura-Bali grid.
CalEnergy Generation’s Salton Sea Geothermal Plants, US – 340MW
CalEnergy Generation’s Salton Sea Geothermal Plants include a cluster of ten generating geothermal plants in Calipatria, near the Salton Sea in Southern California’s Imperial Valley that have a combined generating capacity of 340MW.
CalEnergy Generation, the operator of the field, has 50% interest in the facilities, while the remaining 50% is held by MidAmerican Geothermal. The generated power is supplied to Southern California Edison Company.
Unit one with an output capacity of 10MW was the first to come online in 1982. It was built by a joint venture of Union Oil Company and Southern California Edison. The tenth field came online in 2000. CalEnergy Generation is currently developing new projects in the area, including the Black Rock Project, which will consist of three new 50MW geothermal plants.
Sarulla Geothermal Power Plant, Indonesia – 330MW
The 330MW Sarulla Geothermal power plant is located in the Pahae Julu and Pahae Jae districts of the North Sumatra Province, Indonesia.
The power plant is operated by the Sarulla Operations Limited (SOL) consortium, which comprises Medco Energi Internasional Tbk, Inpex Corporation, Itochu Corporation, Kyushu Electric Power, and Ormat Technologies.
Developed with an investment of $1.7bn, the power plant comprises three units of 110MW each. The first unit commenced operations in March 2017, while the second unit was commissioned in October 2017 and the third unit started operations in May 2018. The power plant supplies electricity to approximately 2.1 million households.
Hellisheidi geothermal power plant is a flash steam, combined heat and power plant (CHP) located at Mount Hengill, approximately 20km east of the capital city of Reykjavik. The plant has a production capacity of 303MW of electric energy and 400MW of thermal energy.
The eighth largest geothermal power plant in the world, Hellisheidi is owned by Orkuveita Reykjavikur. It was constructed by Mannvit Engineering and Verkís Engineering. The power generated by the plant is supplied primarily to the nearby aluminium refineries.
The plant was commissioned in five phases from 2006 to 2011. It covers an area of approximately 13,000m². Six high-pressure (HP) turbines for the plant were supplied by Mitsubishi, while a low-pressure (LP) turbine was supplied by Toshiba.
Tiwi Geothermal Complex, Philippines -289MW
Tiwi Geothermal Complex is located at Tiwi in the province of Albay, roughly 300km south-east of Manila, the Phlippines. The 289MW (net) complex is owned by Aboitiz Power’s subsidiary AP Renewables.
The complex consists of three power plants featuring two units each. Drilling works at the geothermal field were commenced in 1972 and the power plant became operational in 1979.
Darajat Power Station, Indonesia -271MW
Darajat Power Station is located at Garut in Pasirwangi District, West Java. The 271MW geothermal power station It was originally developed by a group of companies that includes Chevron Global Energy and Union Oil Company.
Star Energy Consortium, comprising Star Energy Group Holdings, Star Energy Geothermal, AC Energy, and Electricity Generating Public Company, acquired the power plant in December 2016. The power station comprises three plants, which serve the provinces of Java and Bali. The plants were commissioned respectively in 1994, 2000, and 2007. Plants two and three of the power station share common facilities, including the steam gathering system.
The latest commissioned plant was built by Thiess Contractors Indonesia in collaboration with Kanematsu Corporation. It features a turbine supplied by Mitsubishi Heavy Industries (Mhi). The turbine for the second plant was also supplied by MHI. Hyundai Engineering supplied the equipment for the first two plants.
