  1. Project
17 October 2001

Baglan Bay CCGT Power Plant

A combined-cycle gas turbine (CCGT) power plant in the Baglan Bay Energy Park generates 525MW.

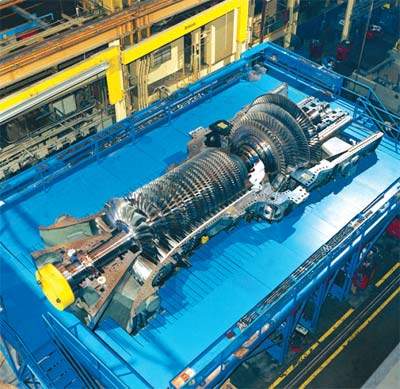

Frame 9H rotor on the half shell.
The 525MW plant was at the time the most advanced CCGT facility of its kind.
A main steam pipe for the boilers on the Baglan Bay Power Station.
CCGT power plant in the Baglan Bay Energy Park.

A combined-cycle gas turbine (CCGT) power plant in the Baglan Bay Energy Park generates 525MW. Considered to be the most advanced CCGT facility of its kind at the time, Baglan Bay is a showcase for General Electric (GE) gas turbines.

The plant cost £300 million. It was built and is being operated by GE Power Systems. The power plant was a replacement for a BP Chemicals facility, which came out of production in early-2004. The efficiency of the power plant is enhanced through the use of district heating to the surrounding area. The Energy Park is sponsored by BP, the Welsh Development Agency and the Neath Port Talbot County Borough Council.

H system gas turbines

GE has installed its H system turbines at the facility. The world’s largest gas turbine (the 9H) is 12m-long, 5m in diameter, weighs 370t and is rated to produce 480MW of electricity in combined cycle operation. The H System provides high-efficiency electricity production with low levels of emissions. According to General Electric, the efficiency of the turbines is close to 60%, giving savings as high as 30% on fuel bills. The possible savings in energy are accentuated by the UK’s imposition of a climate change levy designed to discourage heavy energy use.

“According to General Electric, the efficiency of the turbines is close to 60%, giving savings as high as 30% on fuel bills.”

The power plant has one 9H gas turbine, one steam turbine, and one electrical generator (with a nominal capacity of 480MW). The plant has combined heat and power (CHP) capability, a heat recovery steam generator (HRSG), steam supply systems with additional heat recovery, black start capability and associated auxiliaries such as cooling towers, water treatment plant and backup steam supplies. The site also includes a GE LM2500 aero-derivative power generation system capable of black starting (i.e. starting with no electrical input). This is effectively a small, extra power plant.

Power plant construction timetable

The first application to build a power plant at the site was made in 1996. This was made by BP Amoco, and was originally intended for a 1,100MW CCGT power plant. The new facility was approved by the UK Government in early-1999. The H System was shipped to Baglan Bay in December 2000 and was constructed in the General Electric facility at Greenville, South Carolina. It started up in 2002, followed by characterisation testing through mid-2002 and field testing in November 2002. It went commercial shortly afterwards.

The Baglan Bay project was welcomed by the local authorities for the amount of regeneration and employment it brought to the area. It supplied hundreds of temporary jobs during construction, as well as a number of permanent jobs for the longer term.
