Flat Ridge 2 Wind Farm

The 470MW Flat Ridge 2 Wind Farm is situated about 43 miles southwest of Wichita in south-central Kansas, US.

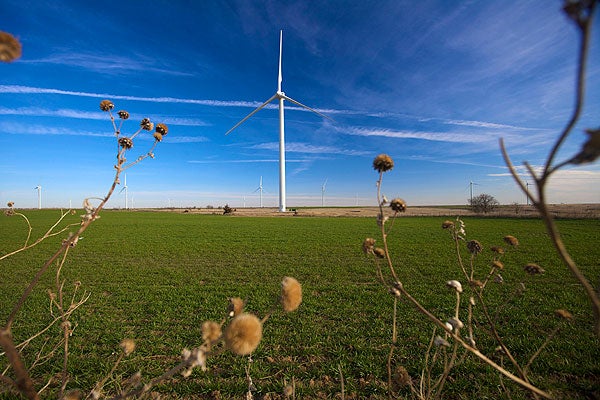

The Flat Ridge 2 Wind Farm is located about 43 miles southwest of Wichita in south-central Kansas. Image courtesy of BP p.l.c.
The Flat Ridge 2 Wind Farm features 294 GE 1.6-100 wind turbines. Image courtesy of BP p.l.c.
The GE 1.6-100 wind turbine features WindSCADA control system. Image courtesy of GE Energy.

Falt ridge

Free Report

Wind Power Market seeing increased risk and disruption

The wind power market has grown at a CAGR of 14% between 2010 and 2021 to reach 830 GW by end of 2021. This has largely been possible due to favourable government policies that have provided incentives to the sector. This has led to an increase in the share of wind in the capacity mix, going from a miniscule 4% in 2010 to 10% in 2021. This is further set to rise to 15% by 2030. However, the recent commodity price increase has hit the sector hard, increasing risks for wind turbine manufacturers and project developers, and the Russia-Ukraine crisis has caused further price increase and supply chain disruption. In light of this, GlobalData has identified which countries are expected to add the majority of wind power capacity out to 2030. Get ahead and download this whitepaper for more details on the current state of the Wind Power Market.
by GlobalData
Enter your details here to receive your free Report.

The 470MW Flat Ridge 2 Wind Farm is situated about 43 miles southwest of Wichita in south-central Kansas, US. It is owned jointly by BP Wind Energy and Sempra US Gas & Power, and operated by BP Wind Energy. The $800m wind farm began commercial operations in December 2012.

Claimed as the state’s largest wind farm, the Flat Ridge 2 was constructed on a 66,000-acre site that covers parts of Barber, Harper, Kingman and the Sumner Counties. It follows the completion of the 50MW Flat Ridge 1 wind farm in 2009.

“More than 500 workers were employed during the construction.”

The electricity generated by the Flat Ridge 2 is enough to power around 140,000 homes in the US, on average. More than 500 workers were employed during the construction and 30 permanent workers were employed for monitoring and maintaining the wind farm.

Flat Ridge 2 wind farm makeup

The facility was initially planned for a capacity of 419MW but later expanded by 51MW. It features 294 GE 1.6-100 turbines with a capacity of 1.6MW each, having a hub height of 213ft and rotor diameter of 271ft.

Financing for the Flat Ridge 2 facility

The Flat Ridge 2 wind farm was jointly funded by BP and Sempra. BP holds 50% stake in the project, while Sempra holds the remaining.

Generation and transmission of power from the Flat Ridge 2 facility

Energy generated by the facility is delivered through a new 46-mile generation tie line connecting to an existing 345kV transmission line in Sumner county.

Blattner initially deployed a 42-mile single circuit 345kV steel monopole transmission line provided with direct embed and drilled pier foundations. The company, in addition, built two 345kV substations with capacitor banks and an 18-acre two-ring bus expandable switchyard facility for the 51MW expansion project.

Under the long-term power purchase agreements, Associated Electric Cooperative receives 310MW of the energy generated by the facility, American Electric Power’s subsidiary Southwestern Electric Power Company receives 109MW and Arkansas Electric Cooperative Corp receives the remaining. The generated power will be exported to Missouri, Arkansas and Louisiana.

Flat Ridge 2 wind farm technology

The 1.6-100 turbine, having a gross capacity factor of 53% at 7.5m/s, helps wind developers to gain greater energy capture and better project economics. The three-blade, upwind, horizontal axis turbine has greater blade length and uses carbon fibre.

“The turbines generate low noise and offer higher annual energy production and a higher capacity.”

The turbines generate low noise and offer higher annual energy production and a higher capacit. It also features WindSCADA control system.

Contractors involved with the Flat Ridge 2 Wind Farm

The turbines for the Flat Ridge 2 wind farm were supplied by GE as part of a contract signed in October 2011. The $750m worth five-year wind turbine supply and maintenance contract was meant for two wind farms – the 144MW Mehoopany Wind Farm in Pennsylvania, which features GE’s 1.6-82.5 technology and the Flat Ridge 2 facility. These two projects represent a combined investment of around $1bn by BP and Sempra.

A local consulting firm in Wichita provided geotechnical services for the project. Minnesota-based engineering, procurement and construction (EPC) contractor Blattner Energy was awarded the construction contract. Blattner’s scope of work included right-of-way clearing, spotting, framing, stringing, drilling, civil work, setting, sagging and clipping of the line.
