RITZ Instrument Transformers Medium-Voltage and Low-Voltage Transformers

RITZ has recently decided to concentrate on a core business of medium-voltage and low-voltage transformers, with the high-voltage transformer division being sold. The resources gained through this will be used for additional innovations and quality standards for medium and low-voltage products.

Medium-voltage instrument transformers

We provide medium-voltage instrument transformers up to 72.5kV, for both indoor and outdoor applications. Of metal-clad or metalised design, they include burst-proof metering voltage transformers for railway vehicles.

Low-voltage instrument transformers

RITZ offers low-voltage instrument transformers of up to 1.2kV.

Current transformers for measuring and protection purposes

We provide a range of current transformers for measuring and protection purpose. These transformers include:

  • Wound primary CT
  • Auxiliary CT
  • Summation CT
  • Window type CT
  • CT for switch fuses
  • Tube type CT
  • Window type CT for high currents
  • Multi-range CT
  • Split-core types for earth fault protection
  • Split-core CT

Special instrument transformers for measuring purposes

Our special instrument transformers for measuring include three-phase CT, laboratory current and voltage transformers, and voltage transformers. We also provide instrument transformers for bill / tariff metering, and damping inductance devices against ferroresonance.

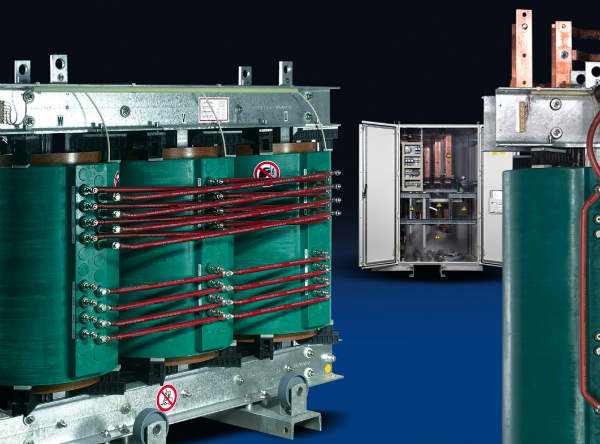

Cast-resin insulated power transformers

We provide cast-resin insulated power transformers of up to 40,5kV and 25MVA.

Glass-fibre reinforced high-voltage coils and low-voltage coils

Glass-fibre reinforced vacuum technology (GVT) is used for high-voltage coils and optionally for low-voltage coils in order to guarantee the highest possible quality and reliability, and to avoid cracks or voids during manufacturing and service.

Applications include:

  • Power distribution
  • Rectifier drives
  • Oil platforms / vessels
  • Generator excitation
  • Injection systems
  • Transmitter systems
  • Grounding systems
  • Laboratory system
  • Traction power systems (for trams, metros and railways)

Turnkey medium-voltage and low-voltage transformers

We provide a wide range of transformer installation services, including disposal of existing oil and PCB transformers, and system start-up.

Special transformers

In addition to their standard transformers, RITZ also produces special transformers for a variety of special applications:

  • Injection transformers for ripple-control applications
  • Reactors for ripple-control applications
  • High-current transformers
  • Earthing transformers
  • Medium-frequency transformers
  • Filter and blocking reactors
  • Smoothing and inter-phase reactors

Environmental, climatic and fire protective transformers

RITZ transformers are designed according to required international specifications like DIN/VDE or IEC. Furthermore they fulfill all climatic, environmental and fire protection requirements, including environmental class E2, climate class C2, fire protection class F1, and basic impulse level list 2.

The requirements for environmental protection are taken into account during the design of RITZ transformers. Characteristics include:

  • Impulse voltage proof
  • Partial discharge free
  • Short-circuit proof
  • Highest mechanical strength
  • Cooling channels in HV and LV coils
  • Pre-galvanised steel frame

Under the trading name RITZ Instrument Transformers, RITZ has been pooling its activities to gather new strengths since 1 August 2007. The tradition and knowledge of the parent company RITZ Messwandler Hamburg and the subsidiary RITZ Messwandler Dresden (TuR) have been united with the companies Wandler- und Transformatoren-Werk Wirges (WTW) and Messwandlerbau Bamberg (MWB) under this name. This merger unites a total of more than 200 years of know-how in instrument transformers production.

Electronic instrument transformers and sensors

We provide voltage-sensoric electronic instrument transformers and sensors. They feature voltage up to 90kV, accuracy of 0.2%, and frequency from 0kHz to 10kHz.

RITZ also offers current-sensoric electronic instrument transformers and sensors. They feature current up to 24.000A, accuracy of 0.01%, and frequency from 0kHz to 10kHz.

Applications include:

  • Power engineering
  • Grid analysis
  • Traction power distribution systems
  • Protection technology
  • Elektro-chemistry
  • Switchgear systems
  • Environment engineering
  • Automobile industry research

Customised cast-resin parts for electrical equipment

We provide development and formulation of cast-resin moulding materials for electrical applications in low and medium-voltage ranges and for electronics, as well as design and production services for cast-resin mouldings such as special bushings and fuse housings.

Under the trading name RITZ Instrument Transformers, RITZ has been pooling its activities to gather new strengths since 1 August 2007. The tradition and knowledge of the parent company RITZ Messwandler Hamburg and the subsidiary RITZ Messwandler Dresden (TuR) have been united with the companies Wandler- und Transformatoren-Werk Wirges (WTW) and Messwandlerbau Bamberg (MWB) under this name. This merger unites a total of more than 200 years of know-how in instrument transformers production.

The overseas corporations of RITZ Instrument Transformer in Austria (Marchtrenk), Hungary (Kecskemét) and China (Shanghai) strengthen the company’s position on the international market.
