Since 1978 Field System Machining (FSM) has provided field machining solutions to steel mills, power plants, ships, factories of all types, aluminum mills, refineries, forges, chemical plants and construction sites on four continents. We provide on-site, in-situ and in-place machinery repair.
In addition to working directly for producers we also work for OEM, outage, maintenance, general contracting, turbine, and engineering firms. Furthermore, we maintain one of the world’s largest portable machine tool inventories. FSM’s results are precise, efficient and cost-effective.
Field machinery repair services for power plants
We provide a range of field machinery repair services for power plants, including the following.
Steam path repair
At FSM, keeping your steam path maintenance costs to an absolute minimum without a sacrifice in precision quality or system performance is our first and only priority. That is why we offer the industry’s most comprehensive array of expert, specialized steam path services, including:

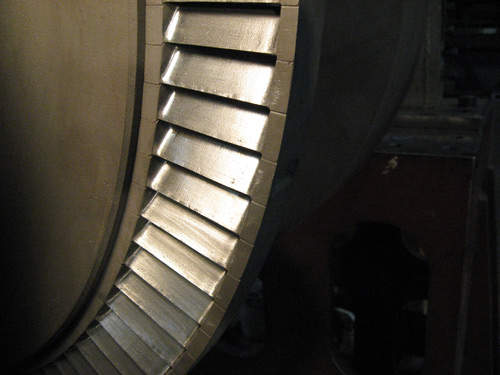

Field System Machining provides complete in-shop and in-field turbine overhauls, including turbine blade and bucket replacement, turbine stationary blade repair, turbine diaphragm repair, turbine shell repair and turbine nozzle-overhaul repair.

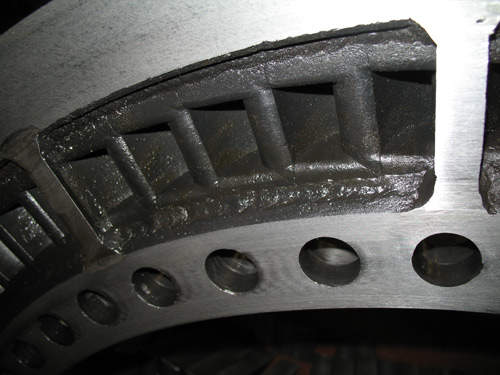

We offer major field and shop overhaul of turbine nozzles, turbine diaphragms, and turbine stationary blades.

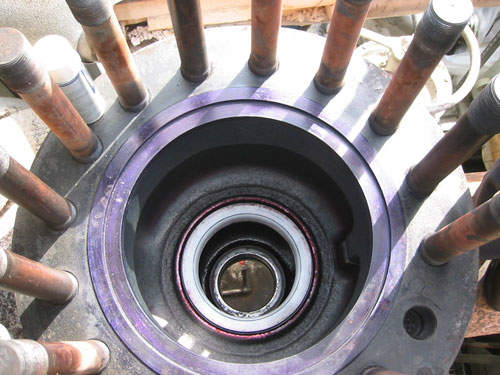

FSM provides main turbine stop valve and turbine steam-chest repair, turbine steam-chest overhaul, turbine main stop-valve crack repair, turbine steam-chest crack repair and valve-seat replacement.
Our hydroelectric wet-end repairs include shaft, journal, runner, wear ring, discharge ring, draft tube, wicket gate and all other hydroelectric wet-end machinery repairs.

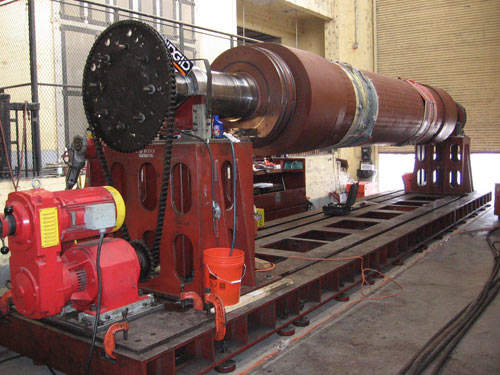

FSM has portable lathe capacities up to 250t capacity, suitable for turbine and generator field repair including turbine blade, turbine bucket, generator collector ring, thrust collar, shaft journal, and shaft repair.
Complete shop and on-site NDE
Computerized area check
Complete welding and heat-treating capabilities for joints, integral root radial seals, partitions and blade rings, set-back faces, crush pins, and packing and seal hook fits
Steam path repair assessments (alternative repair recommendations instead of often unnecessary and costly replacement parts)
Manufacture and replacement of blades and buckets
Replacement and repair of erosion shields
Replacement and repair of tie wires
Weld repairs to lashing lugs
Complete welding capabilities and refurbishment to tenons
Shroud band/cover replacements
Stationary component refurbishment of nozzles, diaphragms and blade rings
Manufacture, machining and replacement of seals and packing
Main stop valve crack repairs, and all other steam path crack repairs
Our journal / shaft machining for power plants includes tooling, grinding and polishing of journals, collector rings, thrust faces, hydrogen seals (applicable to turbines, generators, motors, pumps, drive shafts and propulsion shafts); welding and reconditioning of damaged or worn shafts; reverse engineering of old shafts; and manufacturing of new replacement shafts and components.
Line-bore machining for power plants
We provide line-bore machining of all types for power plants. Equipment we can line-bore machine includes:
Turbine casings and inner cylinders, nozzle blocks, bearing seats, and valves of all types and sizes
Manways, valve bodies and seats
Upper, intermediate and lower seal and wear rings/surfaces
Gate-valve sealing faces, wicket-gate bores, and discharge and throat rings
Pump and compressor housings and cylinders
Gearboxes
Equipment stands/frames
Stern tubes and rudder and driveshaft bushings
Inspection bore ring samples, bottle boring, over boring and bore plug manufacturing equipment
Our over-boring capabilities range from 2in upwards, and bore capabilities are from 2¾in upwards. Standard bottle-bore capabilities are up to 14in, but we can provide larger on request.
Field machining for power-plant mills and components
We offer a wide range of field machining services for power plant mills and components, including gearboxes, crane pin bores, cylinder bores, and coupling bolt holes of all kinds.
Milling services for power plants
FSM provides a variety of milling services for power plants, including:
T-slot and keyway cutting
Horizontal-joint milling for turbines, pumps, valves and compressors
Machining of support ledges for generator spider assembly (hydropower units)
Machining foundations for engines, pumps, generators, compressors and motors
Honing, drilling and welding for power plants
Our honing, drilling and welding services for power plants include drilling/honing in all positions; tapping and internal/external threading; counter-boring and spot facing; and honing capabilities from 2¾in up to 12in, for items up to 40ft long.
Flange-face machining for power plants
We provide flange-face machining for power plants, including for the following equipment: turbine casings, splitline repairs, pressure vessels, heat exchangers and process reactors; coupling flanges (elliptical, oval and circular configuration can be accommodated); and hand holes, manway flanges, access doors and valves of all types and sizes.
Combustion turbine repair services
FSM provides high-quality, detailed and comprehensive field and shop repairs for combustion turbines and turbine components, including:
Deep hole boring, custom boring machines: Deep hole boring, deep hole drilling, deep hole on site machining, deep hole portable drilling and deep hole portable boring are Field System Machining specialties.
