Arjay Engineering Oil in Water, Spill and Level Monitoring for Power Plant Operations
Arjay Engineering manufactures sensors and controls to monitor levels, interface, and leaks in oil-water separators, cooling water systems and sumps in both environmental and process control applications.
The company provides tools for measuring diluted concentrations of oils, including water analysers, oil-on-water detectors, and alarms.
Oil leak analysers for heat transfer and water cooling systems
Small oil leaks in heat transfer systems’ cooling water can be monitored using Arjay’s light scattering or fluorescent technologies.
Arjay’s HydroSense series of analysers offer parts per million (ppm) and mg/l oil concentration in water monitoring.
Light scattering is used in filtered or recirculated cooling water for non-aromatic, synthetic and vegetable oils. Fluorescent light is used to selectively monitor petroleum-based oils by targeting the aromatic compounds.
Oil water separator monitors for power plant operations
Arjay’s capacitance probes are used to monitor separated oil. The company offers the 2852-OWS single alarm sensor to indicate when an oil-water separator has accumulated a sufficient amount of oil to be pumped, while the 4100-OWS series provides a proportional display of the depth of collected oil, with multiple alarms and outputs.
Both oil water separator monitors are used in applications for stormwater run-off, transformer, generator, and general site oil / water management. Relay control is available for alarms, valves and pump controls.
High-level alarms and pump controls for power applications
Arjay provides dry pump and high-level alarms for all water, oil or other fluid storage and transfer uses. Basic and single point alarms, as well as continuous monitors, are also available for pumps and valves.
Floating oil spill sensors and probes for generators and transformers
Oil that has leaked from generators and transformers will typically accumulate in sumps. Arjay offers its unique 2852-HCF series spill monitor to detect any oil in the equipment. A floating sensor scans for changes in the water’s surface and signals when there is a build-up of oil present.
The device has been designed to not raise nuisance alarms from trace oil sheens. In applications where the sump is used to accumulate and hold significant amounts of oil, the 2852-OWS sensing probe is available. A warning is emitted if any oil has collected near the drain.
Sensing pucks for pumps and valves in the power industry
Arjay supplies area sensing pucks to specify if there is a leak in pumps and valves. The instrument is normally used in dry areas such as indoor tank berms, electrical vaults, and drip pans.
The firm offers capacitance probes that scan for buried liquid accumulation caused by an internal or external breach in the interstitial space of double-walled tanks.
For more than 30 years, Arjay has designed and manufactured sensors and controls for the power industry worldwide.
All of its products carry electrical safety certification to CSA, UL/ANSI, and IEC standards, while they all have CE-Marking.
For hazardous location installations, sensors are available with CSA/UL and IECEx certification for Zone 0, 1 and 2 in either explosion-proof or intrinsically safe arrangements.
The company is based in Oakville, Canada, and has many product representatives in North America and other areas of the world.
Products and Services
The Hydrosense 4410-OCM provides efficient real-time flow-through parts-per-million (ppm) monitoring of both petroleum and non-petroleum oil present in water.
Floating Oil Spill Alarm
Used in sumps and containments, or anywhere oil may accumulate on water, the 2852-HCF from Arjay offers a cost-effective approach to monitor oil spills.
Oil in Water Analyser
Monitoring oil in water for environmental compliance and cooling water contamination in power plants is made easy using the fluorescence technologies from Arjay Engineering.

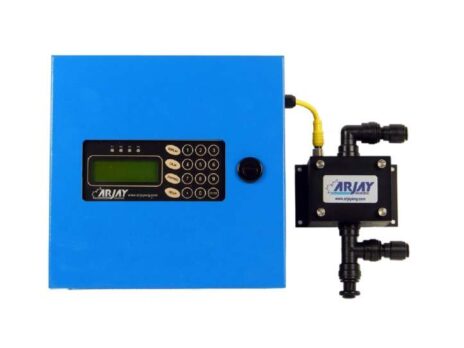

HydroSense 4410-OCM Oil Content Monitor
The Hydrosense 4410-OCM is a flow-through real-time monitor for online ppm (mg/l) indication of petroleum and/or non-petroleum oil in water.
A Guide to Oil in Water Monitoring for Environmental Compliance
This guide focuses on oil in water for environmental compliance.
