TECSYSTEM TEMPERATURE MONITORING UNITS & COOLING SYSTEMS
Founded in 1980, Tecsystem researches, designs, manufactures and sells electronic and electromechanical equipment for the temperature control of electrical machines such as motors, generators and transformers.
Quality and reliability are the most important characteristics of all devices manufactured by Tecsystem.
In over 30 years, Tecsystem has produced more than 600,000 electronic devices for different applications, such as railway, airport, marine, construction, food, and metropolitan, as well as alternative energies, such as wind and photovoltaic.
Besides, Tecsystem can count some of the most important Italian and worldwide companies as being among the main customers.
Temperature monitoring of MV dry type and cast resin transformers

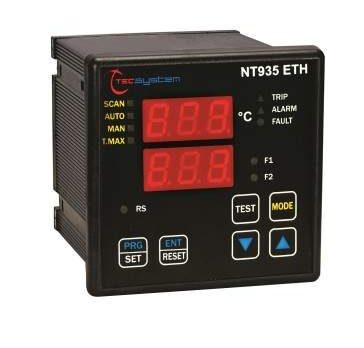

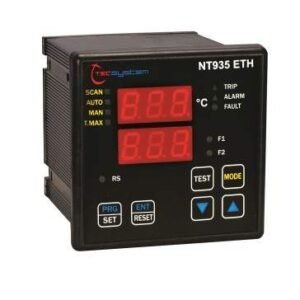

NT935 is an electronic microprocessor based unit specifically designed for dry type and cast resin transformers. It is a temperature monitoring unit for transformers, similar to the standard T154, but because of the communication system it provides in the other versions the possibility to change all the settings the user wants to between the relays thresholds.
Communication with the network is made through Tecsybus protocol, which allows the connection of optional Tecsystem modules: RS485 Modbus digital output (BUSMOD8A); analog output 4-20 mA (CONV420/4A), Ethernet protocol IEC61850. (CONV61850), expansion relays (MULTIMODULE).
Temperature control systems for electrical machines
The MM453 is a complete unit for controlling the temperature of the diesel generators and biogas, designed to monitor the bearings, exhaust gas, lubricating oil and coolant. A large alphanumeric LCD display allows the easy reading of operating parameters.
Equipped with a highly flexible configuration, this unit can be customised for various applications to control the plant. It can be configured up to a maximum of 24 inputs, from RTD Pt100, Pt1000 or TcK.
Temperature control of oil power and hermetic transformers
The new system TPL503 + NT210 K represents the innovation for the protection of hermetic oil-filled transformers.
The classic electromechanical control devices are being replaced by the electronic sensor TPL503, which is installed directly on the transformer, and is able to monitor the oil temperature, pressure, and level.
The innovative sensor is connected to the machine by an integrated flange (see product picture). The sensor data is transmitted through an RS485 serial connection to the NT210 K unit, which can be directly installed on the control panel. This allows for remote control of all measures and indications, such as alarm, trip, fan / pump.
The transparent body of the sensor allows the operator a 360° view of the oil level.
System reliability is ensured by a complete self-test circuit, able to manage and report any anomalies of the sensor and control unit.
Air-force cooling systems
Tecsystem has developed a line of ventilation to meet the many needs of the market, as a result of the experience gained over many years in the industry.
The air-force cooling system allows the transformer to withstand higher than rated power and to maintain an optimum temperature, increasing the security of the machine itself. The installation of the fans on board is facilitated by the aluminum bar, which provides a fast and easy installation.
Tecsystem certificates for reliability and quality
The maximum level of reliability is granted and recognised by the certifications obtained: RI.NA – UL – CSA and the ISO 9001 in 2001. This approval is the consequence of the high diligence of Tecsystem staff, in searching the best quality product and assistance to the customers.
Monitoring of Electrical Machines
The mission of TECSYSTEM® is, from 35 years, to offer innovative products for the protection and monitoring of electrical machines, using the most current technologies; especially of transformers of various sizes and power ratings, are they encapsulated in resin, dry or oil types.
The new system TPL503 + NT210 K represents the innovation for the protection of hermetic oil-filled transformers.Read more
